Kingston FURY Renegade G5 PCIe 5.0 NVMe M.2 SSD

For gamers, enthusiasts and high-power users seeking extreme performance

Kingston FURY Renegade G5 PCIe 5.0 NVMe M.2 SSD

For gamers, enthusiasts and high-power users seeking extreme performance

Capacity

    Kingston FURY™ Renegade G5 PCIe 5.0 NVMe M.2 SSD is for high-power users, hardware enthusiasts and gamers ready for the latest Gen 5x4 performance. With raging speeds of up to 14,800MB/s read and 14,000MB/s write, its extreme performance boosts game and app load times and improves reaction time, while its exceptional design keeps it cool.

    Unleash the full potential of your system with Kingston FURY Renegade G5 PCIe 5.0 NVMe M.2 SSD. By leveraging the latest PCIe Gen5 x4 controller and 3D TLC NAND, Kingston FURY Renegade G5 SSD offers extreme speeds of up to 14,800/14,000MB/s read/write{{Footnote.N76142}}.

    Optimised for high-performance PCs, gaming PCs and workstations, with full capacities of up to 4096GB{{Footnote.N37130}}, this solution eliminates storage bottlenecks and reduces load times significantly to power high-intensity gaming and video editing, as well as data-heavy workflows.

    The Kingston FURY Renegade G5 is engineered with a Silicon Motion SM2508 controller based on 6nm lithography and low-power DDR4 DRAM cache for reduced heat and energy consumption. These adaptations ensure smooth operation for demanding applications while preserving efficiency.

    In addition, its 12-layer PCB design enhances signal quality and data integrity, while keeping performance consistent under heavy workloads. Perfectly balanced for content creation, high-end applications and productivity, this cutting-edge storage solution delivers unmatched speed, efficiency and durability to elevate your gaming and professional experience.

    Ask an Expert

    Choosing the right SSD for your data centre project requires an understanding of your intended workload.

    Let Kingston’s experts guide you

    Form factor M.2 2280
    Interface PCIe 5.0 x4 NVMe
    Capacities{{Footnote.N37130}} 1024GB, 2048GB, 4096GB
    Controller SM2508
    NAND 3D TLC
    DRAM cache Yes
    DirectStorage supported Yes
    Sequential read/write{{Footnote.N76142}} 1024GB – up to 14,200/11,000MB/s
    2048GB – up to 14,700/14,000MB/s
    4096GB – up to 14,800/14,000MB/s
    Random 4K read/write{{Footnote.N76142}} 1024GB - up to 2,200,000/2,150,000 IOPS
    2048GB – 4096GB - up to 2,200,000/2,200,000 IOPS
    Endurance (total bytes written){{Footnote.N52588}} 1024GB – 1.0PB
    2048GB – 2.0PB
    4096GB – 4.0PB
    Power consumption{{Footnote.N76143}} 1024GB – 0.27W avg / 6.6W @ 14.2G / 6.6W (MAX)
    2048GB – 0.27W avg / 7.0W @ 14.7G / 7.0W (MAX)
    4096GB – 0.27W avg / 7.1W @ 14.8G / 9.5W (MAX)
    Storage temperature -40°C~85°C
    Operating temperature 0°C~70°C
    Dimensions 80mm x 22mm x 2.3mm
    Weight 1024GB – 7.3g
    2048GB-4096GB – 7.7g
    Vibration operating 2.17G peak (7-800Hz)
    Vibration non-operating 20G peak (20-1000Hz)
    MTBF 2,000,000 hours
    Warranty/Support{{Footnote.N52589}} Limited 5-year warranty with free technical support
    • Extreme PCIe Gen5 speeds

    • Advanced thermal design

    • Seamless integration

    • Maximised capacity

    Ask an Expert

    Ask an SSD Expert

    Planning the right solution requires an understanding of your project’s security goals. Let Kingston’s experts guide you.

    Key Features

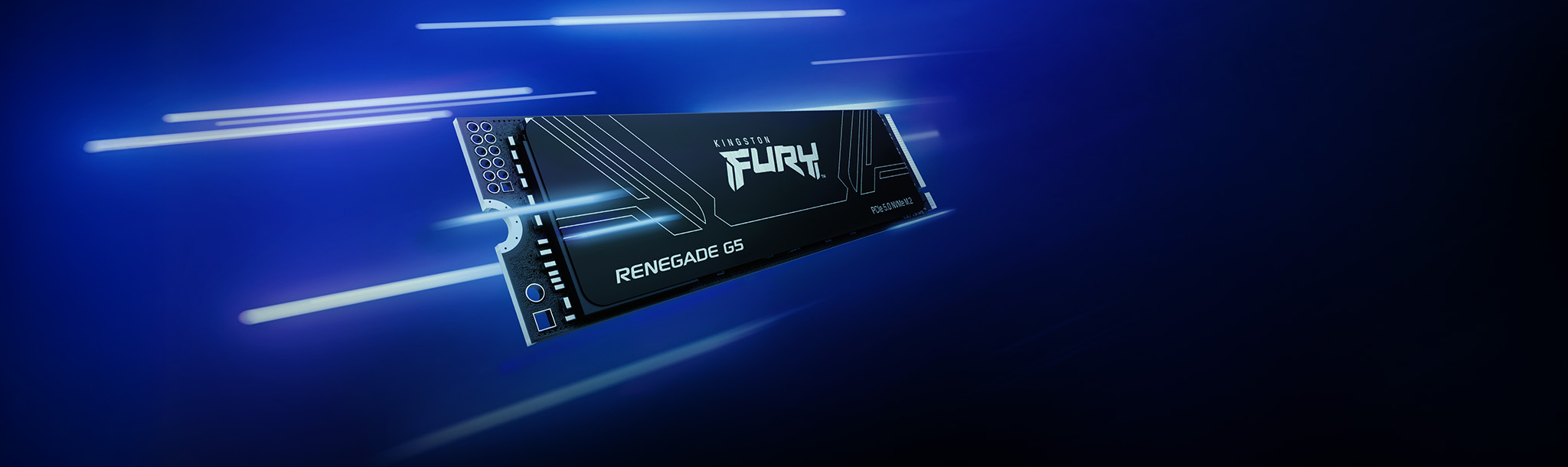

    Kingston FURY Renegade G5 with a speedometer

    Extreme PCIe Gen5 speeds

    Take control with cutting-edge PCIe Gen5 x4 speeds of up to 14,800/14,000MB/s{{Footnote.N76142}} read/write and up to 2,200,000/2,200,000 IOPS{{Footnote.N76142}} performance.

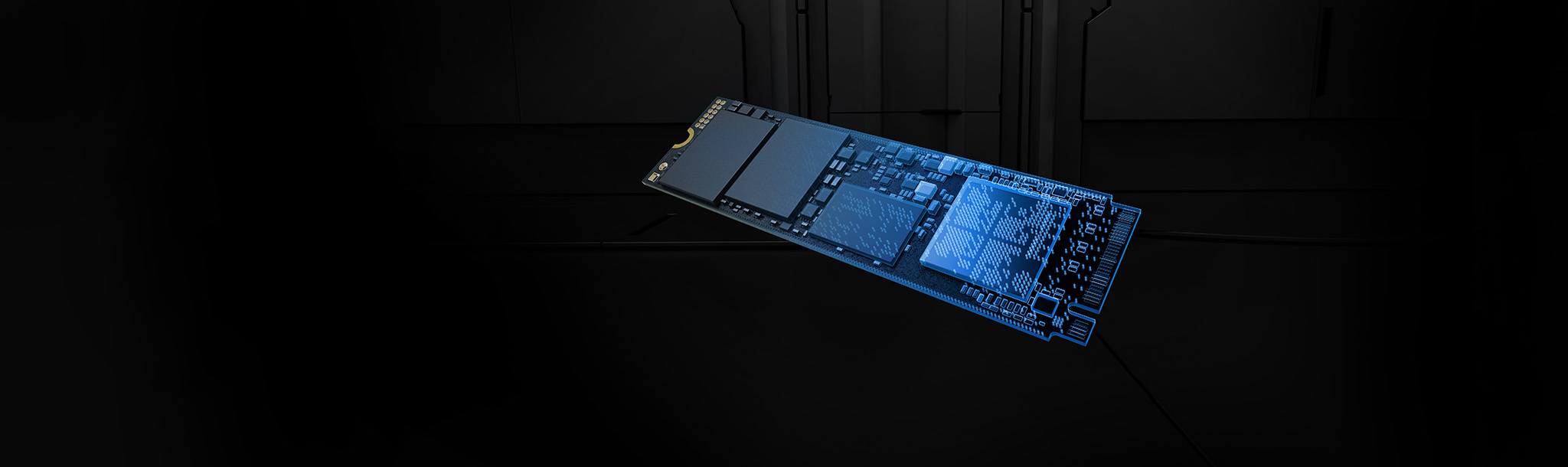

    Kingston FURY Renegade G5 X-ray view

    Advanced thermal design

    Designed with the Silicon Motion SM2508 controller based on 6nm lithography which allows for better thermal management, low-power DDR4 DRAM cache providing less power consumption, independent Buck IC for consistent power draw and a 12-layer PCB for enhanced signal quality and superior data integrity.

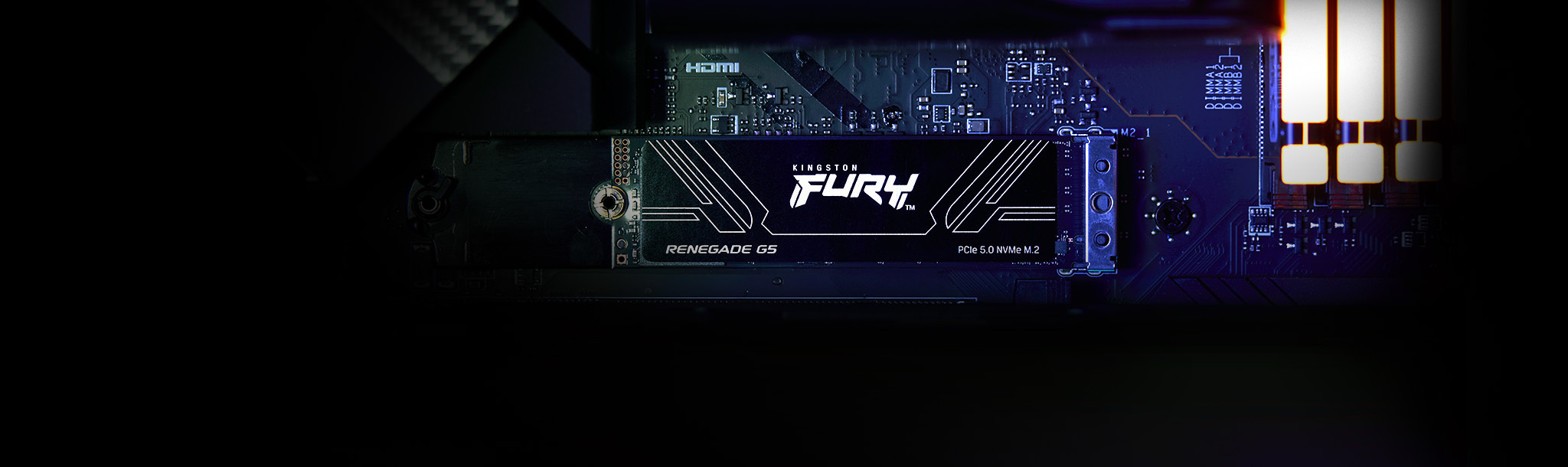

    Kingston FURY Renegade G5 installed in a motherboard

    Seamless integration

    Compact M.2 2280 form factor easily slots into most motherboards and is backwards compatible with Gen3 and Gen4 systems.

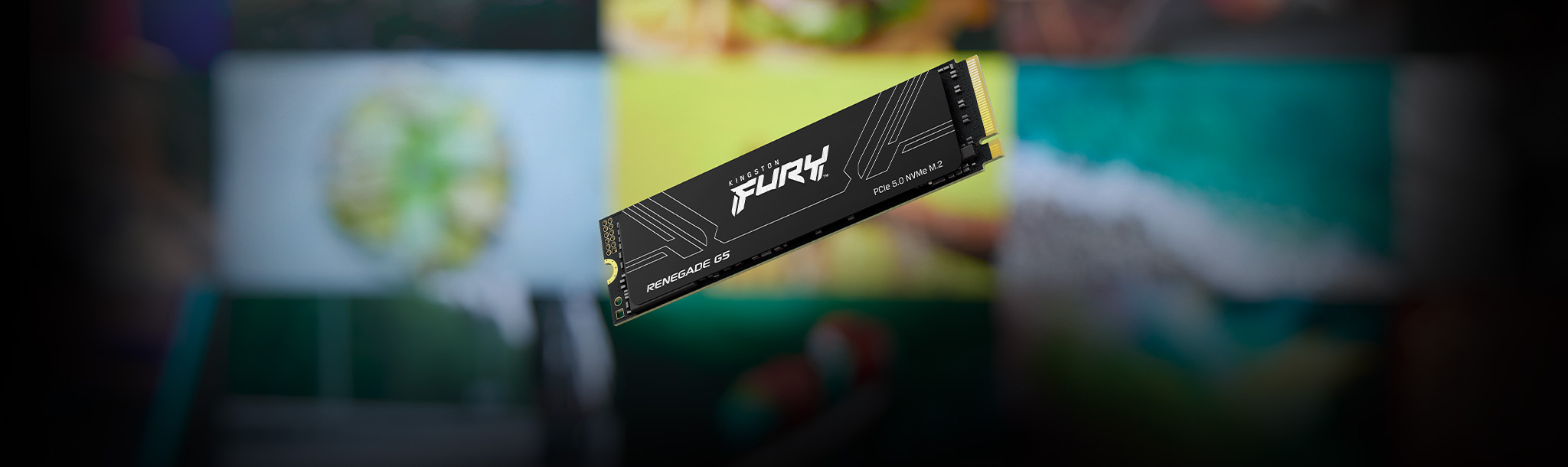

    Kingston FURY Renegade G5 with TV monitors in the background to symbolise media playback

    Maximised capacity

    Full capacities of up to 4096GB{{Footnote.N37130}} to store your favourite games and media.
