AMD Gear Modes: UCLK, MCLK, FCLK and Why They’re Important

You might have already checked out our article Intel Gear Modes Demystified, which breaks down how Intel manages blazing-fast memory speeds. But have you ever wondered how things work on the AMD side and why DDR5-6000 is often called the sweet spot? Let’s dive in and uncover the inner workings of AMD Gear Modes.

AMD Gear Modes are the clock speed ratios of the integrated memory controller (IMC) inside the CPU to the clock speed of the memory modules. Essentially, they dictate how fast the CPU's memory controller communicates with the RAM. This allows for greater flexibility in achieving higher memory speeds and compatibility with various memory kits.

There are three key elements in AMD systems that determine memory performance:

1. Memory Clock (MCLK) – The speed of the memory where active data is temporarily stored for the processor.
2. Internal Memory Controller Clock (UCLK) – The speed of the processor’s memory controller that manages the communication between memory and the CPU.
3. Infinity Fabric Clock (FCLK) – The speed of the interconnect that links and coordinates data flow across the entire processor.

Whether it’s gaming, video editing, 3D rendering, or AI processing, your workload depends heavily on how these three clocks stay in sync. To manage this, AMD uses two operating modes: Gear 1 and Gear 2. These modes define the relationship between the Memory Clock (MCLK) and the Memory Controller Clock (UCLK). Understanding how they interact is essential for choosing the memory kit speed that delivers the best performance for your needs.

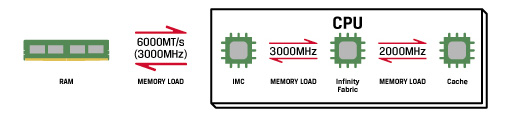

Gear 1 (1:1 Ratio)

• IMC and the memory operate at the same frequency.
• Infinity Fabric operates at 2000MHz
  • Best for gaming or latency-sensitive workloads
  • By keeping the memory and IMC ratio at 1:1, you’re able to minimize latency
  • DDR5-6000 is the sweet spot for AM5 systems since it is generally the highest speed that can achieve Gear 1 out of the box without adjusting additional overclock parameters
  • ex: DDR5-6000 (3000MHz) → IMC runs at 3000MHz → Fabric runs at 2000MHz

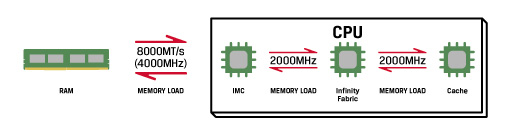

Gear 2 (2:1 Ratio)

• IMC operates at half the memory frequency
• Infinity Fabric operates at 2000MHz
  • Best if you need memory bandwidth for AI, video editing, 3D rendering or any applications where throughput is more important than responsiveness
  • Required for higher speed memory (DDR5-6200+)
  • 2:1 ratio allows for more stability, but may introduce additional latency
  • Generally, DDR5-6400 to DDR5-7200 speeds will offer higher bandwidth (allow more data to move to and from the memory and processor at a time), but increased latency offsets the gains
  • DDR5-7600 and higher is where we start to see the bandwidth overcome the latency penalty
  • ex: DDR5-8000 (4000MHz) → IMC runs at 2000MHz → Fabric runs at 2000MHz
