2D vs 3D NAND: Differences Between SLC, MLC, TLC and QLC Flash Storage

Flash memory sits at the center of many devices we use every day, whether it’s a USB drive, the memory card in a camera, the storage inside a phone, or internal and external SSDs. As the technology has developed, so have the methods used to store data within each memory cell. Modern flash solutions apply different cell designs to increase capacity, optimize cost, or improve endurance depending on how the device will be used.

If you have ever wondered why some drives feel faster, last longer, or offer larger capacities at lower prices, the answer often lies in the type of flash they contain. This guide explains the key differences so you can understand what is happening at the memory level and choose the flash technology that best suits your needs.

What is NAND flash memory?

NAND is a non-volatile flash memory which can hold data even when it’s not connected to a power source. The ability to retain data when the power is turned off makes NAND a great option for internal, external and portable devices. USB drives, SSDs and SD cards all utilize flash technology, providing memory for your notebook, PC, smartphone or digital cameras.

There are several types of NAND on the market. In simplest terms, what separates each type is the number of bits that can be stored per cell. The bits represent an electrical charge which can only hold one of two values, 0 or 1, on/off.

The key differences between the types of NAND are the cost, capacity, and endurance. Endurance is determined by the number of Program-Erase (P/E) cycles a flash cell can undergo before it starts to wear out. A P/E cycle is the process of erasing and writing a cell and the more P/E cycles that the NAND technology can sustain the better the endurance of the device.

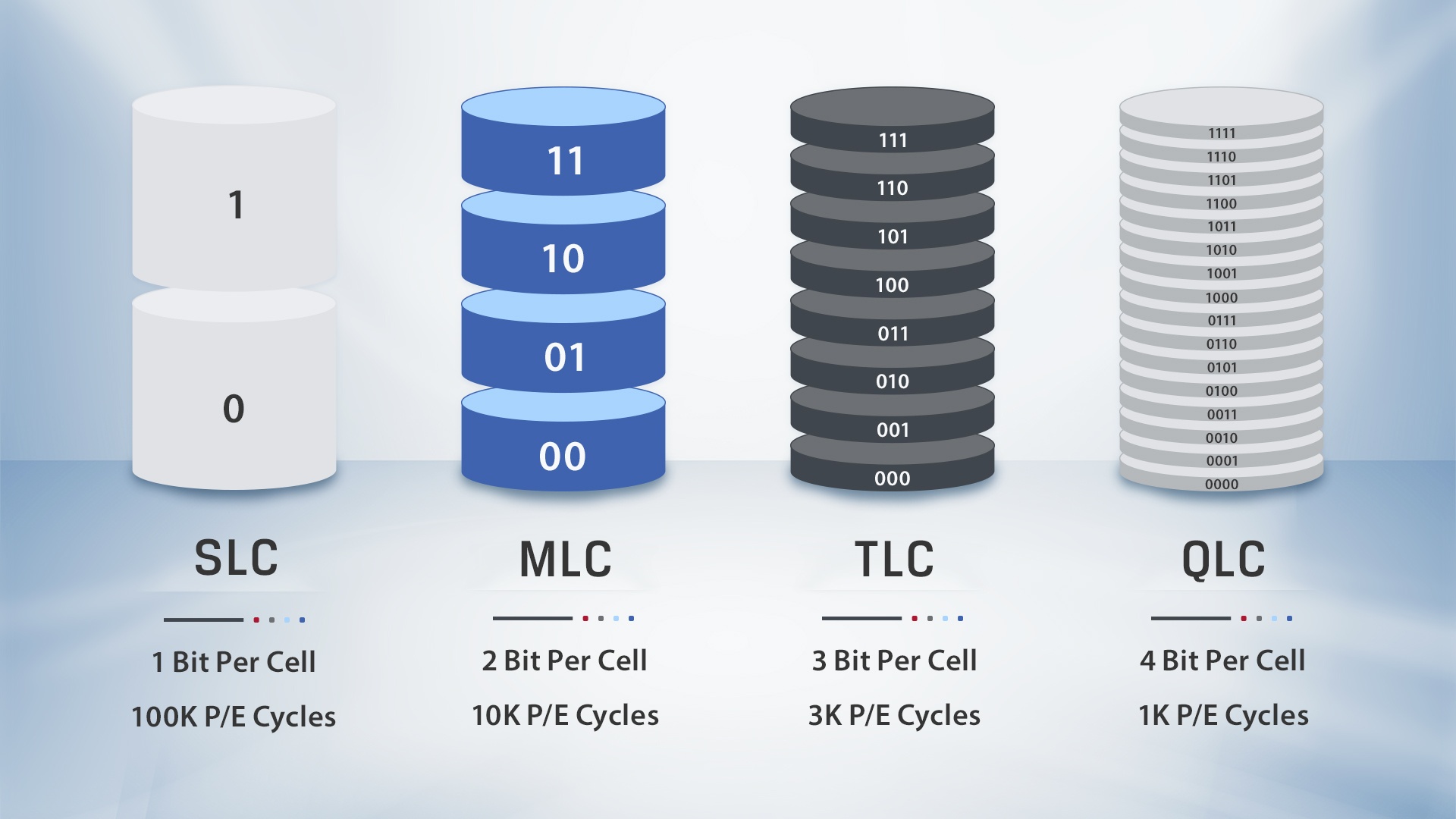

The most common types of NAND flash storage are SLC, MLC, TLC, and QLC, each offering a different trade‑off. In the following sections, we will take a closer look at the characteristics of each type and what makes them suitable for different applications.

2D NAND: Planar NAND explained

2D NAND, also called planar NAND, is the earlier form of flash memory where cells are arranged side by side in a single horizontal layer. As manufacturers worked to increase capacity, the limited space on the silicon wafer made it difficult to shrink cells without affecting reliability. Smaller cells were more prone to interference and wear, which reduced endurance and slowed further scaling.

Although 2D NAND helped establish the foundation for modern flash storage, it reached its physical limits as demand for higher capacities grew. It is still used in some lower cost or legacy applications, but most modern storage has moved to 3D NAND because stacking cells vertically allows for higher densities, better endurance, and more efficient production.

SLC NAND: Single‑level cell

Pro: Highest endurance – Con: Expensive and low capacities.
Single-level cell (SLC) NAND stores only 1 bit of information per cell. The cell stores either a 0 or 1 and as a result, the data can be written and retrieved faster. SLC provides high performance and the highest endurance with 100,000 P/E cycles, so it will last longer than the other types of NAND. However, its low data density makes SLC the most expensive type of NAND and therefore not commonly used in consumer products. It is typically used for servers and other industrial applications that require speed and endurance.

MLC NAND: Multi‑level cell

Pro: Cheaper than SLC – Con: Slower and less endurance than SLC.
Multi-level cell (MLC) NAND stores multiple bits per cell, although the term MLC typically equates to 2 bits per cell. MLC has a higher data density than SLC, therefore can be produced in larger capacities. MLC has a good combination of price, performance, and endurance. However, MLC is more sensitive to data errors and with 10,000 P/E cycles has a lower endurance compared to SLC. MLC is usually found in consumer products where endurance is less important, however TLC and QLC are more common applications in modern computing.

What is 3D NAND: Vertical NAND architecture

3D NAND has been one of the biggest innovations in the flash market. Flash manufacturers developed 3D NAND architecture to correct the problems they were facing with 2D NAND to achieve higher densities at a lower cost. NAND manufacturers decided to stack the cells in a different dimension, which led to 3D NAND where the cells are stacked vertically. The higher memory density allows for higher storage capacities without the huge price increase. 3D NAND also provides better endurance and lower power consumption.

TLC NAND: Triple‑level cell

Pro: Low cost and high capacities – Con: Low endurance.
Triple-level cell (TLC) NAND stores 3 bits of information per cell. By managing 8 different voltage states, TLC provides a significant jump in storage density over MLC, allowing for the mass production of high-capacity SSDs at consumer-friendly prices. While it is slower and has lower endurance than SLC or MLC, typically offering between 3,000 and 5,000 P/E cycles, it remains the industry standard for mainstream PCs, laptops, and gaming consoles. Advances in controller technology and the use of pSLC caching have made TLC's performance nearly indistinguishable from MLC for the average user, making it the most common type of NAND on the market today.

eTLC: Enterprise-level TLC

Enterprise Triple-Level Cell (eTLC) is not a different physical architecture, but a high-grade version of 3D TLC NAND that has been reserved for its superior quality. While standard consumer TLC is designed for typical daily workloads, eTLC undergoes rigorous testing to ensure it can handle the constant, 24/7 data writing required by data centers and servers. By using the best silicon and increasing over-provisioning, eTLC can achieve significantly higher endurance, often reaching 10,000 to 30,000 P/E cycles. This makes it the industry choice for enterprise environments that need a balance between the high capacity and durability.

QLC NAND: Quad‑level cell

Pro: Cheapest and high capacities – Con: Slowest write speeds and lower endurance.
Quad-level cell (QLC) NAND stores 4 bits of information per cell. By utilizing 16 distinct voltage levels, QLC achieves the highest data density of any mainstream NAND type, making high-capacity SSDs (like 4TB and 8TB models) much more affordable for consumers. However, managing these 16 levels is a complex process that significantly slows down write speeds and increases the wear on the drive. QLC typically offers around 1,000 P/E cycles, making it ideal for read-heavy tasks like storing game libraries, media collections, or long-term archives where data isn't being constantly overwritten.

pSLC mode: Pseudo‑SLC caching

Pseudo-SLC (pSLC) is not a different type of physical flash, but a management mode where high-density cells (like TLC or QLC) are programmed to store only 1 bit of data instead of their maximum capacity. This allows the drive to mimic the burst performance and endurance similar of true SLC. Most modern consumer SSDs use a pSLC Cache, which is a small portion of the drive dedicated to handling incoming data quickly before moving it to the slower, high-density storage area, this makes the drive feel much faster during daily use.

The future of NAND flash memory

NAND flash technology has undergone a remarkable evolution, transitioning from simple flat structures to the complex vertical structures of 3D NAND. By balancing the speed of pSLC caching with the high-density efficiency of TLC and QLC, manufacturers can now deliver the massive capacities and speed required by modern gaming and professional workloads. As our demand for data continues to increase, the continued refinement of NAND architecture ensures that high-speed, high-capacity storage remains both accessible and reliable for the next generation of computing.
